Category Archive Products

Byadmin

Flexible

NASOPHARYNGOSCOPE


OUTSTANDING DURABILITY

The innovative features and the outstanding optical quality of this new generation of flexible nasopharyngoscopes has been developed in close cooperation with clinical users.

State-of-the-art production methods and technologies come together to achieve a high quality product.


HIGH RESOLUTION

The new generation of fibre-optic technology provides brilliant detail definition at the edges of the images as well as at the center, facilitating recognition of even the smallest structures.









FLAWLESS HYGIENE

This flexible nasopharyngoscope is designed for optimum hygiene.


HIGH IMAGE BRIGHTNESS

The unique brightness typical of rigid endoscopes has been achieved in the flexible nasopharyngoscope.


DEPTH OF FOCUS

A particularly high depth of focus guarantees a clear, sharp image on a larger range.

Adapters for connection to all conventional light guides are supplied as standard.


TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS
Field of View 85°
Depth of Field 2.5 – 50mm
Outer Diameter Insertion Tube 3.4mm
Outer Diameter Distal End0 3.4mm
Working Legth 300mm
Bending Range of Distal Tip UPWARD 130°

DOWNWARD 130°



ANF-6 6x710mm, non water-proof

ANF-6 6x710mm, water-proof

ANF-6 6x710mm, water-proof, import image bundle

Specifications:

• Angle of view field: >100º

• Depth of view field: 3-50mm

• Distal end diameter: 5.3mm

• Range of tip bending: Up 130º, Down 90º

• Instrument channel diameter: 2.0mm

• Working/Total length: 410mm/710mm


ABF-6 6x800mm, non water-proof

ABF-6 6x800mm, water-proof

ABF-6 6x800mm, water-proof, import image bundle

Specifications:

• Angle of view field: >100º

• Depth of view field: 3-50mm

• Distal end diameter: 5.3mm

• Range of tip bending: Up 130º, Down 90º

• Instrument channel diameter: 2.0mm

• Working/Total length: 530mm/800mm


XS-30 9.8x1350mm, non water-proof

XS-30 9.8x1350mm, water-proof

AGF-40 9.8x1350mm, water-proof, import image bundle

Specifications:

• Angle of view field: >95º

• Depth of view field: 3-100mm

• Range of tip bending: Up 180º, Down 90º, Left/Right 120º

• Instrument channel diamete:2.8mm

• Working/Total length: 1010mm/1350mm


VME-98 9.8×1300 Video gastoscope, cold light source and video camera interative(one frame freeze) or separate (four frame freeze)

Specifications:

• Angle of view field: >140º

• Depth of view field: 3-100mm

• Distal end diameter: 9.8mm

• Insertion tube diameter: 9.6mm

• Range of tip bending: Up 210º, Down 90º, Left/Right 100º

• Resolution: 440, 000 Pixels

• Instrument channel diameter: 2.8mm

• Working/Total length: 1035mm/1300mm

Display: Full screen


XC-900 13x1350mm, non water-proof

XC-900 13x1350mm, water-proof

XC-1300 13x1650mm, non water-proof

XC-1300 13x1650mm, water-proof, import image bundle

Specifications:

• Angle of view field:100º

• Depth of view field: 5-100mm

• Range of tip bending: Up 180º, Down 180º, Left/Right 160º

• Instrument channel diameter: 3.2mm

• Working length: 1000mm (XC-900), 1300mm(XC-1300)

• Total length: 1350mm (XC-900), 1650mm(XC-1300)


VME-1300 13×1600 Colono videoscope, cold light source and video camera integrative(one frame freeze) or separate (four frame freeze)

Specifications:

• Angle of view field: 140o

• Depth of view field: 3-100mm

• Distal end diameter: 13mm

• Insertion tube diameter: <13mm

• Range of tip bending: Up /Down 180o, Left/Right 160o

• Resolution: 440, 000 Pixels

• Instrument channel diameter: 3.2mm

• Working/Total length: 1300mm/1600mm

Display: Full screen


Byadmin

Rigid

ENDOSCOPES


Byadmin

Carts

IDEAL FOR:

• Endiscopy Cart
• Strobo Cart
• Computer Test
• Video Equipment

Optional:
• LCD Stand-holder
• Tower CPU shelf











Other Carts:

Byadmin

Video Systems, Light Source & Accessories

Video Systems::

PROCAM
The PROCAM includes the following controls:

White Balance
Window Control
Anti-Moire (to use with fiber scopes)
Capture control, to activate our Endodigi capturing and documentation system


Using  1/3″ CCD of the latest generation, the PROCAM offers a great image quality with clarity and very good resolution. Low light sensitivity (1 Lux) and 625 lines resolution.  High speed shutter that provide optimum light control Ergonomic Camera Head


EVERLUX

Light Source LED technology, 50000 hours of LED life. Light, cold and high intensity white.

Output to 4 different types of fiber optics.

Electronic intensity Control

Procam optional camera input


This TV camera is designed specially to by use on all kind of endoscopic procedures, including those that uses the very thin endoscopes and fiber optic scopes.  It can also be used with our microscopes and colposcopes, obtaining excellent image quality.


P6310Endoscope image capture and processing software, use for desktop computer (Win 98 or Win XP)

P6320Endoscope image capture and processing software use for notebook computer (Win XP)

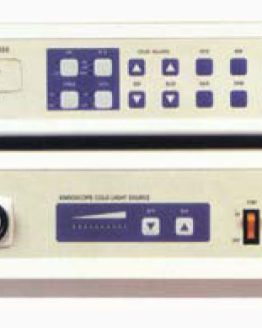

VME-2000Endoscope image control center

Dimension: 420(L)x 380(W)x100(H)mm, weight:10kg

AL-2000Cold light source, 21W short-arc lamp(or Halogen lamp)

Dimension: 420(L)x380(W)x160(H)mm, weight:20kg




Note: All model have 110V or 220V voltage, PAL system only.




P4010Nikeo digital video camera, image device: 1/3 inch SONY CCD, C/CS Mount, resolution: 480 TV lines (horizontal), Made in Japan







P420 Panasonic GP-KS 162 digital video camera, image device: 1/2 inch CCD, M15 x 0.5mm adapter, resolution: 480 TV lines (horizontal), Made in Japan





P4110-P4130 Panasonic GP-US522/532/542 digital video camera, image device: 1/2, 1/3, 1/4 inch 3CCD, special C Mount/ C Mount/ M16x0.5mm adapter, resolution: 800 TV lines (horizontal), Made in Japan





P6310Endoscope image acapture and processing software, use for desktop computer (Win 98 or Win XP)
P6320 Endoscope image capture and processing software use for notebook computer (Win XP)





||||

Light Source::

HALOLUX U-150

The Halolux U-150 light source, was designed specifically for the physician office.






Is a portable equipment based on an halogen bulb of 150Watts, with a rotating adaptor that fit the main fiber optics models available on the market.
The light intensity is regulated with a mechanic diaphragm that maintains the color and quality of the light.
The equipment includes a connection for our video camera PROCAM and a SVHS and composite video output.


EVERLUX

Light Source LED technology, 50000 hours of LED life. Light, cold and high intensity white.

Output to 4 different types of fiber optics.

Electronic intensity Control

Procam optional camera input


XENOLUX

Powerful light source with elevated color temperature (5600K), using HTI technology.






The Xenon like light is white and deep.  It helps to appreciate true colors and it is recommended to all kind of surgical and endoscopic procedures.


XENOLUX 180

Powerful light source with elevated color temperature (5600K), using xenon 180 watts.








The Xenon light is white and deep.  It helps to appreciate true colors and it is recommended to all kind of surgical and endoscopic procedures.The light source has a rotating adaptor that fit the main fiber optics models available on the market.A mechanical diaphragm assures illumination quality.
The Xenolux also includes a connection for our video camera PROCAM and a SVHS and composite video output.


LG-150 150W two halogen lamp cold light source


LG-250 250W two halogen lamp cold light source


LG150-2 150W one halogen lamp cold light source with pump, use for fiberscope onle







XD-300 350W xenon lamp cold light source




XD-300-2 350W xenon lamp and 250W halogen lamp integrative cold light source






||||

Accessories::











P3118-35 Adapter with LOEN rigid endoscope only, non water-proof, focus have 18/23/27/35mm









P3218-35 Adapter with all kings of rigid endoscope, water-proof, focus have 18/23/27/35mm

P3323(N) Adapter with integrated beamsplitter, focus is 23mm, you can choose water-proof or non water proof

Special machine adapter, connect with fiberscope to rigid camera adapter





P3418-35 Directly adapter for Olympus fiberscope, non water-proof, focus have 18/23/27/35mm

P3518-35 Adapter for Olympus fiberscope, with integrated beamsplietter, non water-proof, focus have 18/23/27/35mm

{/magictabs}

Byadmin

ENDODIGI Database Imaging Capuring System

NEW !!! Now the ENDODIGI is available to be used with Touch Screen computers !!



The ENDODIGI equipment is a capturing system for images, video and sound, specially designed for use in the doctor’s office. It also suitable for diagnostic and surgical endoscopies, gynecology, video microscopy, and other applications that involve a video signal.

It’s a small, portable box that can be used with a laptop or desktop computer, using the USB port connections.

The system includes a footswitch control, which allows the user to capture images, and start stop videos providing freedom for hands.

User-friendly software, allows the user to capture a large amount of data images, videos and sounds, which are digitally stored in the computer.

It includes a patient database and image/video banks that organize the information and facilitates the search of specific images and or videos.

Easy of use EDIT function for videos, that allows the user to cut off the undesired part of videos at the beginning and the end of the specific procedure. This feature is a time and disk space saver since allow the user to preserve only the valuable part of the captured video.

It also provides digital recording sound capabilities, in order to document patient’s voice.

The compare function allows the user to compare 2 or more pictures, from the same or different patient.

The report includes the image selected by the user and is easy to configure.

The system allows the image importation from any JPG picture.

The export function is available for Videos (wmv format) and Images (jpg format).

Printing is easy, and uses any windows compatible printer.

Byadmin

Medical And Surgical Equipement, Instrument & Supplies

T0418T0418a T0418 – 4mm 0 degree working length 175mm sinoscope
T0418A – 4mm 0 degreeworking length 175mm sinoscope, wide angle
T3418T3418a T3418 – 4mm 30 degree working length 175mm sinoscope
T3418A – 4mm 30 degree working length 175mm sinoscope, wide angle

T7418T7418a T7418 – 4mm 70 degree working length 175mm sinoscope
T7418A – 4mm 70 degree working length 175mm sinoscope, wide angle
T0218 T0218 – 2.7mm 0 degree working length 175mm sinoscope
T3218 T3218 – 2.7mm 30 degree working length 175mm sinoscope
B3210 B3210 – Sinoscope handle, round
B3220 B3220 – Sinoscope handle, flat
B3010 B3010 – Cannula, shaped beak
B3020 B3020 – Cannula, oblique beak
B3030 B3030 – trocar
B4010 B4010 Sickle knife, pointed
B4020 B4020 Sickle knife, blunt
B4110 B4110 Antrum curette, forward
B4120 B4120 Antrum curette, backward
B4140 B4140 Detacher, double head
B3110 B3110 Suction tube, straight(Large)
B3120 B3120 Suction tube, straight (small)
B3130 B3130 Suction tube, curved(Large)
B3140 B3140 Suction tube, carved(Small)
B1010
B1010 – Alligator biopsy forceps
B1110
B1110 – scissors, straight
B1120
B1120 – Scissors, left curved
B1130
B1130 – Scissors, right curved
B1210
B1210 – Rongeur, forward
B1220
B1220 – Rongeur, Backward
B1310

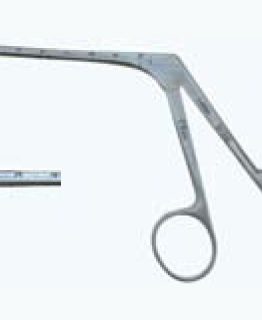

B1310 – Cutting foreceps, straight
B1320

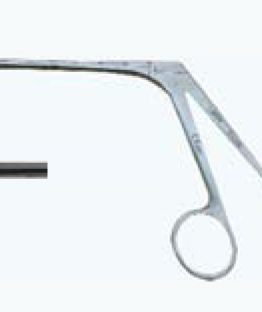

B1320 – Cutting foreceps with a hole, straight
B1330
B1330 – 45 degree cutting forceps
B1340
B1340 – 90 degree cutting forceps
B1370
B1370 – 0 degree cutting foreceps with suction tube
B1380
B1380 – 45 degree cutting foreceps with suction tube
B1450
B1450 – 100 degree polyp forceps, vertical opening
B1370A

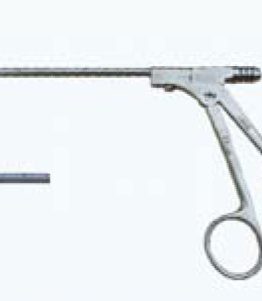

B1370a – 0 degree cutting foreceps with inside suction tube
B1380A
B1380a – 45 degree cutting foreceps, with inside suction tube
B5010
B5010 – 0 degree optical forceps
B5020
B5020 – 30 degree optical foreceps
B5030
B5030 – 70 degree optical foreceps
T0205 T0205 – 2.7mm 0 degree working length 54mm otoscope
T0405 T0405 – 4mm 0 degree working length 54mm otoscope
T3205 T3205 – 2.7mm 30 degree working length otoscope
T3405 T3405 – 4mm 30 degree working length 54mm otoscope
T0211 T0211– 27mm 0 degree working length 108mm otoscope for tympanum
T3211 T3211– 2.7mm 30 degree working length 108mm otoscope for tympanum

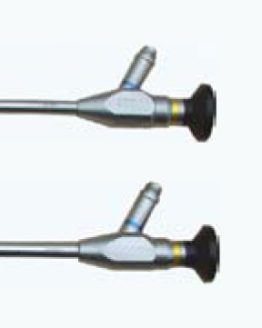

T7819T7919 T7819 – 8mm 70 degreeworking length 187mm laryngoscope
T7919 – 10mm 70 degree working length 167mm laryngoscope
T9819T919 T9819 – 8mm 90  degree working length 187mm laryngoscope
T9919 – 10mm 90 degree working length 187mm laryngoscope
E3010 E3010 – Operating laryngoscope (Large)
E3020 – Operating laryngoscope  (Small)
E3110 – Holder for above laryngoscope
Q2110 Q2110 – 9.5X13X180mm Esophagoscope tube
Q2120 – 10X14X250mm Esophagoscope tube
Q2130 – 11X15X300mm Esophagoscope tube
Q2140 – 11X15X350mm Esophagoscope tube
Q2150 – 12X16X400mm Esophagoscope tube
Q2160 – 13X17X450mm Esophagoscope tube
T0334 T0334 – 3mm 0 degree working length 336 Bronchoscope
Q2010 Q2010 – 4.0X260mm Fiberoptic sheath
Q2020 – 4.5X270mm Fiberoptic sheath
Q2030 – 5.0X270mm Fiberoptic sheath
Q2040 – 5.5X280mm Fiberoptic sheath
Q2050 – 6.0X280mm Fiberoptic sheath
Q5010 Q5010 – Peanut biopsy optical forceps
Q5010 – Alligator biopsy optical forceps

Byadmin

Hearing Aid Accessories And Batteries



DISPENSING TOOLS





































MAINTENACE AND HEARING AID CARE

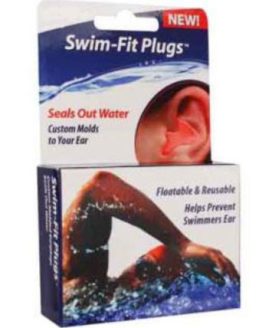

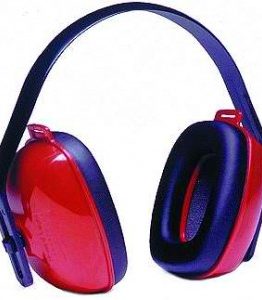

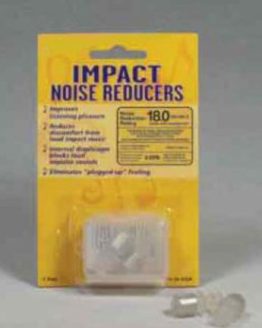

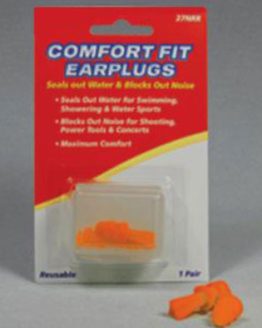

EAR CARE PRODUCTS



































































































ASSISTIVE LISTENING DEVICES



























































MARKETING & POS DISPLAY

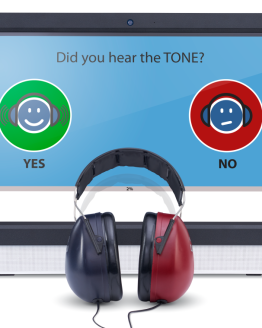

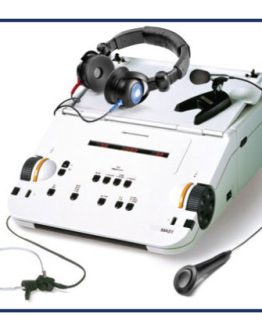

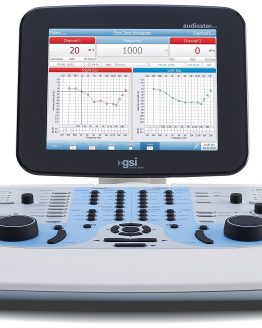

LABORATORY & SERVICE EQUIPMENT






























































































































Byadmin

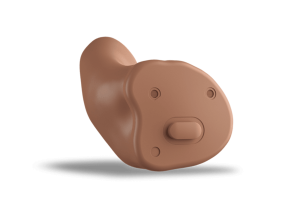

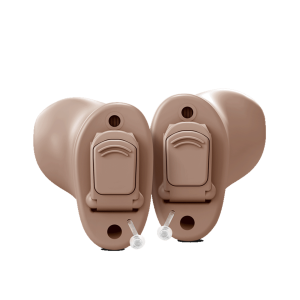

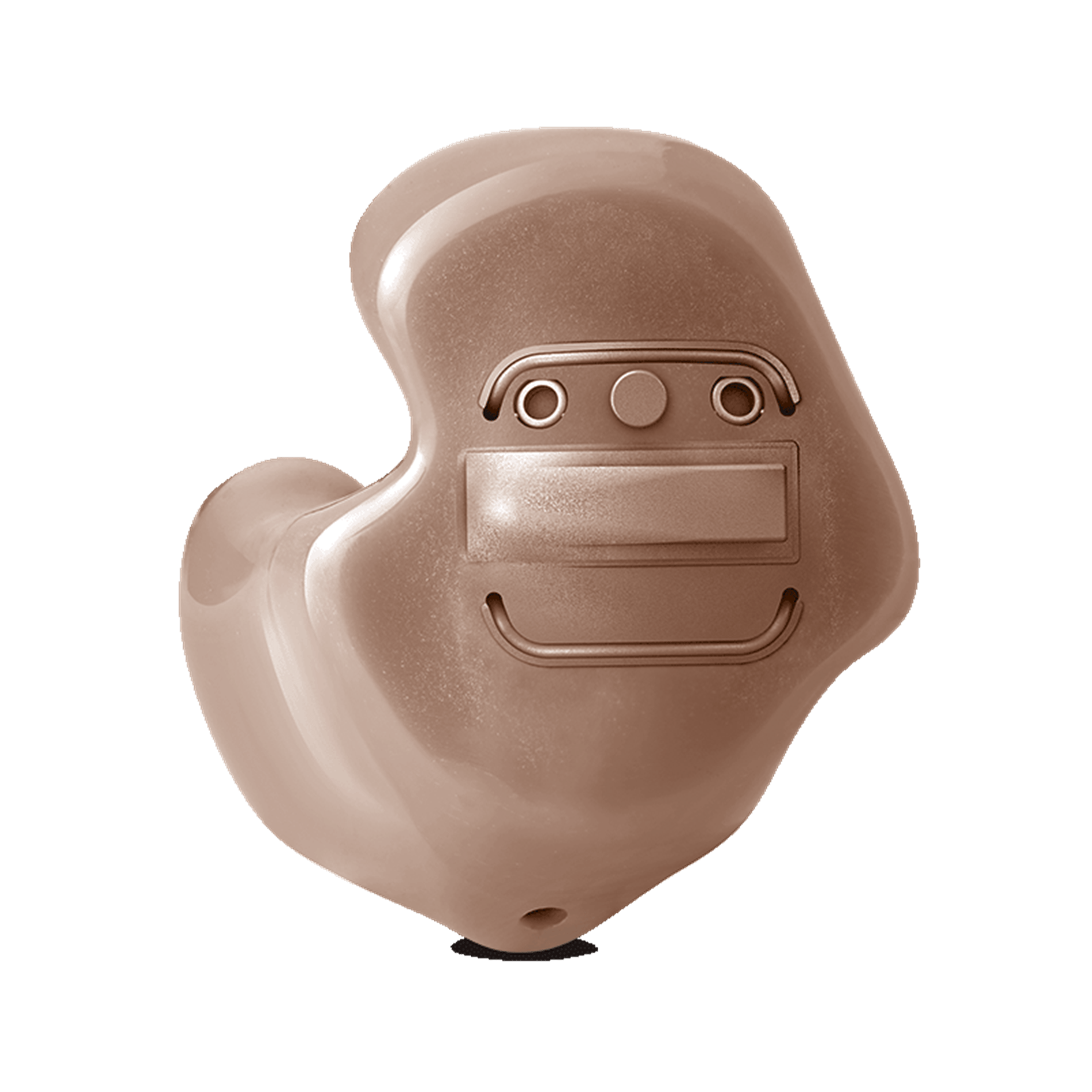

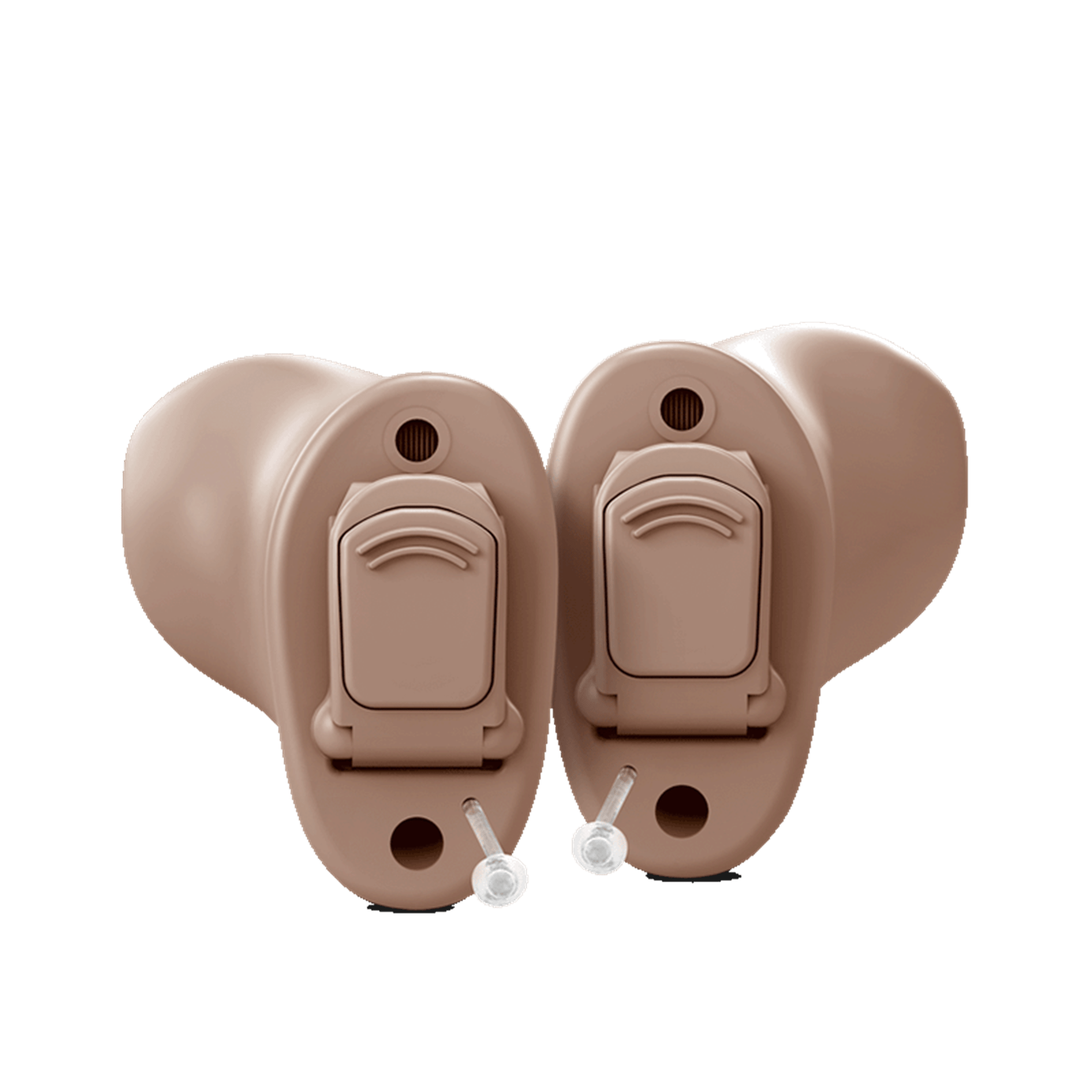

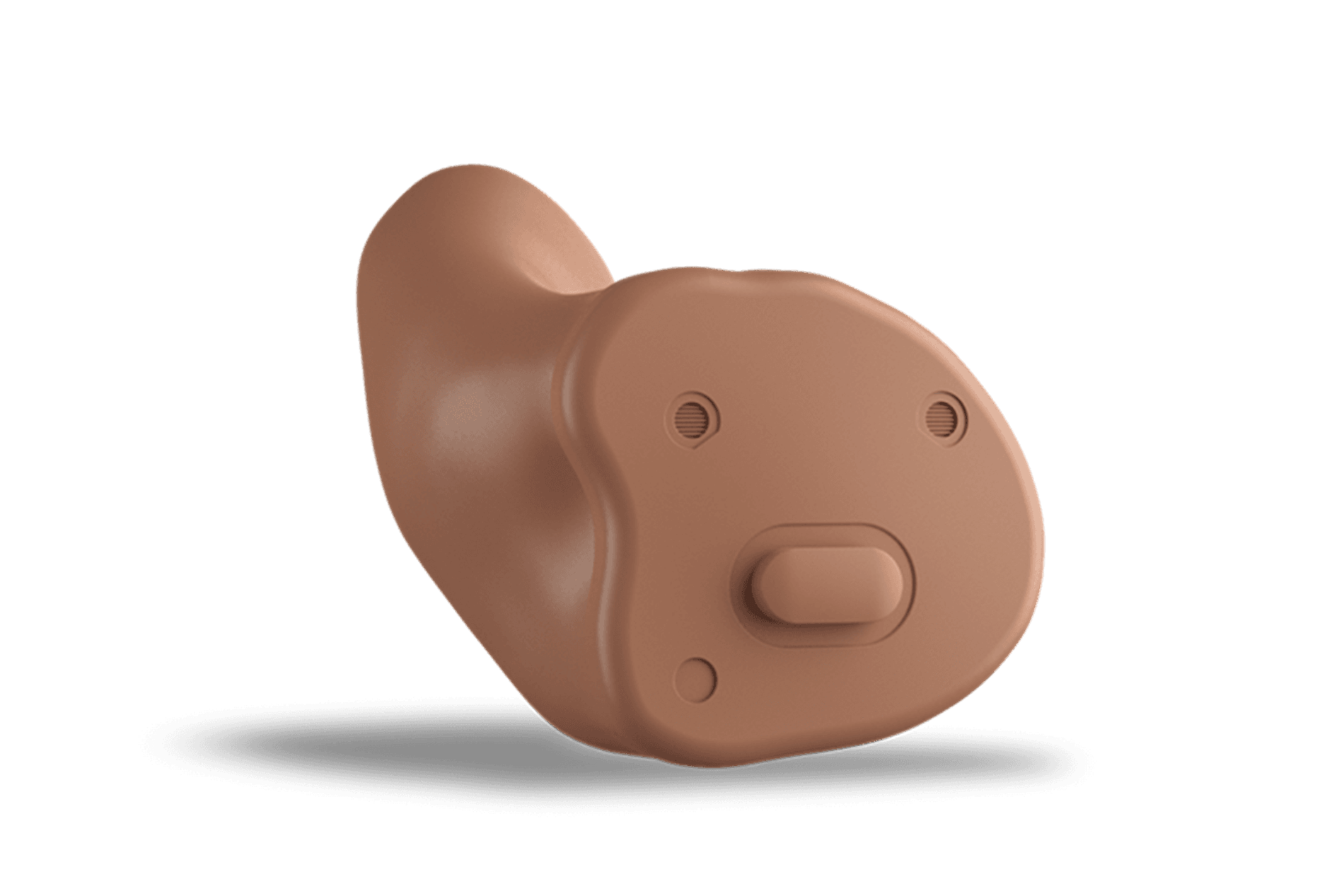

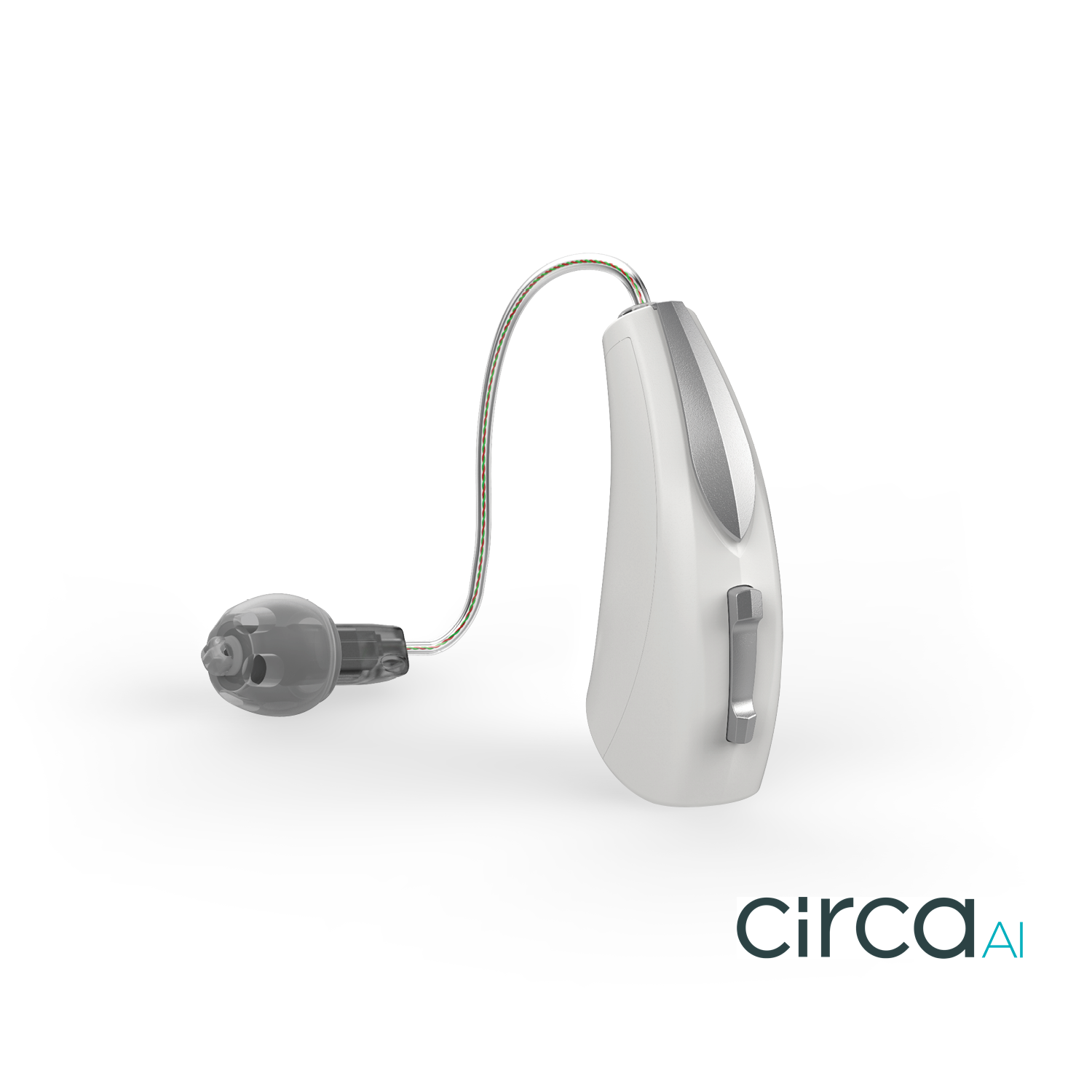

Hearing Aids

BernafonBernafon provides high quality hearing solutions based on the latest technology, for maximum customer satisfaction.

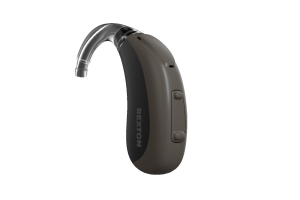

RextonFor over fifty years, Rexton has worked alongside hearing health professionals to develop a portfolio of hearing aids that are both advanced and accessible. Our hearing aids include sophisticated features designed solely to improve your hearing and quality of life. When combined with our high-tech accessories such as the Blu RCU and charging units, Rexton hearing aids offer the utmost in convenience and flexibility.

ExSilentExSilent is an innovative company, built on experienced professionals. We’ve brought together a world of knowledge, with backgrounds in design, software-development, audio-engineering, hearing aids and much more. Our aim is to reduce the barriers for people who are currently not wearing hearing aids, but need one. We believe: “a hearing aid should not look like a hearing aid” and that “a hearing aid should do more than just amplify”. After starting small in 2005, we have rapidly expanded into a company with a global reach and a wide range of high-quality, novel products. We constantly improve our existing designs, make a great effort to present you with the latest technologies and pride ourselves in listening to our customers.
